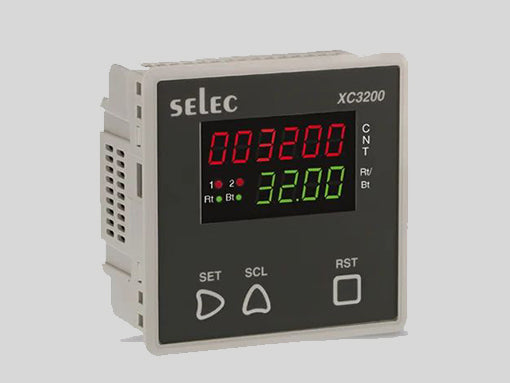

Selec XC3200 Programmable Preset Counter
Selec XC3200 Programmable Preset Counter
Regular price
Rs. 1,850.00
Regular price
Rs. 3,700.00
Sale price
Rs. 1,850.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Model No. | XC3200 |
| Country of Origin | India |
| Display Specifications | |
| Display | 6 digits for Counter, 4 digits for RPM Indicator |
| LED Indications | 1 : Relay1, 2 : Relay2, Rt : Rate Bt : Batch |
| Input Specifications | |
| Sensor Type | NPN / PNP |
| Input Type | Voltage pulse (5 to 30V DC) from Proximity switches, Encoders, Solid state devices, Potential free contact |
| Input Speed | a) 0 to 30Hz b) 0 to 5kHz |
| Accuracy | Rate : 0.05% ± 2 counts |
| Output Specifications | |
| Sensor Supply | Inbuilt, 12V DC, 30mA |
| Relay Contact | 2 C/O DPDT |
| Contact Rating | 5A @ 230V AC / 24V DC |
| Functional Specifications | |
| Modes | ON delay / Interval / Auto reset / Time pulse repeat |
| Ranges | Count : Selectable least count 0.0001, 0.001, 0.01, 0.1 & 1 Rate : Auto ranging 4.00 to 9999 RPS, RPM or RPH mode |
| Set point | 2 |
| Counting Mode | Unidirectional, Bidirectional, Quadrature |
| Counting Direction | Up / Down |
| Memory Retention | Yes |
| Scale Factor | 0.00001 to 9.99999 x 10” n = -5, -4, -3, -2, -1, 0, 1, 2 |
| Reset | Front (user selectable), Remote |
| Optional Specifications | |
| Interface and Protocol | RS485 Communication MODBUS RTU Protocol |
| Communication address | 0 to 250 |
| Transmission mode | Half duplex |
| Transmission distance | 50Meter |
| Transmission speed | 9600, 19200, 38400, 57600, 115200 (in bps) |
| Parity | None |
| Stop bits | 2 |
| Auxiliary Supply Specifications | |
| Supply Voltage | 90 to 270V AC / DC (50 / 60Hz) |
| Power Consumption | 6VA max |
