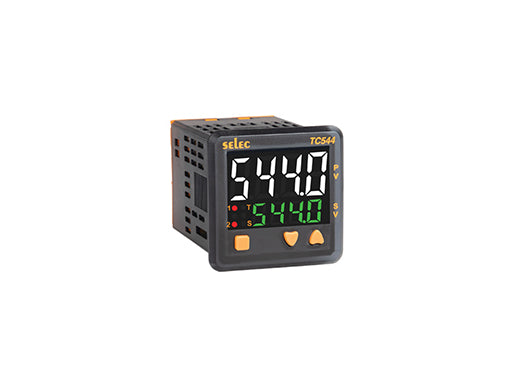

Selec TC544C Temperature Controller
Selec TC544C Temperature Controller
Regular price
Rs. 1,403.00
Regular price
Rs. 2,805.00
Sale price
Rs. 1,403.00
Unit price
/
per
Manufacturer | Selec |
Select Model | TC544C |
Indication
Accuracy |
For J, K & T inputs : 0.25% of F.S. ±1 ° For R & S inputs : 0.5% of F.S. ±2 ° (20 min of warm up time for TC inputs) For RTD input : 0.1% of F.S. ±1 ° (F.S. = Full Scale) |
Resolution | 0.1 / 1 ° for TC / RTD inputs (fixed 1 ° for R & S type TC input) |
Humidity | 95% RH |
Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
Supply voltage | 85 to 270V AC / DC (50 / 60Hz) OPTIONAL – 24V AC / DC, ±10% |
Input | Thermocouple (J, K, T, R, S) / RTD (PT100) |
Output | |
Control Output | (Relay or SSR user selectable) |
Relay contact (SPDT) 5A resistive @ 250V AC / 30V DC
SSR drive (Voltage Pulse) 12V DC, 30 mA |
|
Auxiliary Output | Relay Contact (SPDT) 5A resistive @ 250V AC / 30V DC |
Sampling Time | 250 ms |
Engineering Units | °C / °F Selectable |
Protection class | IP65 for faceplate |
Weight | 116 gms |
