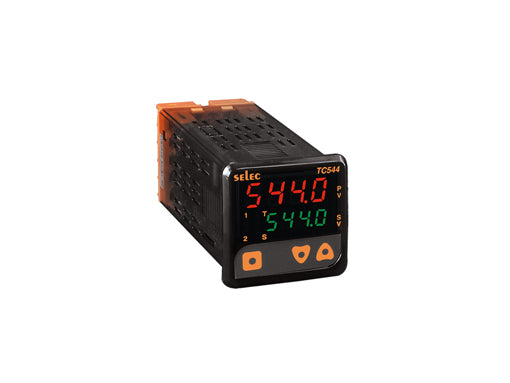

Selec TC544A Temperature Controller
Selec TC544A Temperature Controller
Regular price
Rs. 1,639.00
Regular price
Sale price
Rs. 1,639.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Product Code | Output 1 | Output 2 | Certification | Supply Voltage |
|---|---|---|---|---|
| TC544A | Relay / SSR | Relay (5A) | — | 90 to 270V AC/DC |
| TC544A-24V | Relay/SSR | Relay | — | 12- 24V DC |
| TC544A-CU-RoHS | Relay / SSR | Relay (5A) | CE, RoHS & UL | 90 o 270V AC / DC |
Country of Origin: India
| Manufacturer | Selec |
| Select Model | TC544A |
|
Indication
Accuracy |
For J, K & T inputs : 0.25% of F.S. ±1 ° For R & S inputs : 0.5% of F.S. ±2 ° (20 min of warm up time for TC inputs) For RTD input : 0.1% of F.S. ±1 ° (F.S. = Full Scale) |
| Resolution | 0.1 / 1 ° for TC / RTD inputs (fixed 1 ° for R & S type TC input) |
| Humidity | 95% RH |
| Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
| Supply voltage | 85 to 270V AC / DC (50 / 60Hz) OPTIONAL – 24V AC / DC, ±10% |
| Input | Thermocouple (J, K, T, R, S) / RTD (PT100) |
| Output | |
| Control Output | (Relay or SSR user selectable) |
| Relay contact (SPDT) 5A resistive @ 250V AC / 30V DC SSR drive (Voltage Pulse) 12V DC, 50 mA(TC544A) : SPST RLY) |
|
| Auxiliary Output | Relay Contact (SPDT) 5A resistive @ 250V AC / 30V DC SSR drive (Voltage Pulse) 12V DC, 50 mA(TC544A) : SPST RLY) |
| Sampling Time | 250 ms |
| Engineering Units | °C / °F Selectable |
| Protection class | IP65 for faceplate |
| Weight | 200 gms |
