Selec

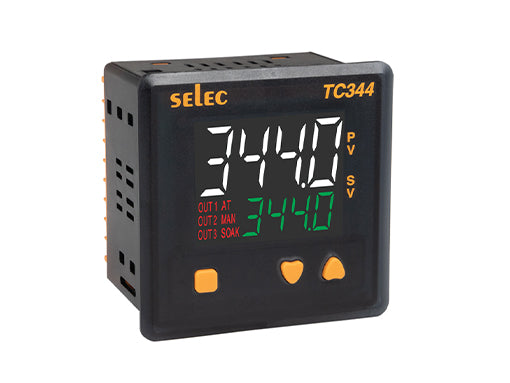

Selec TC344CX White+Green Display, 2 relay output, 96X96mm Temperature Controller

Selec TC344CX White+Green Display, 2 relay output, 96X96mm Temperature Controller

Rs. 1,865.00
Rs. 3,729.00 Rs. 1,865.00
Sale Sold out
Shipping calculated at checkout.
Manufacturer  Selec
Model No.  TC344CX
Display Specifications
Digits  4 + 4 digits, 7 segment digital display
Height  White display: 16.7 mm



Green display: 9 mm
LED Indication  OUT 1: ON AT: Auto tune



OUT 2: ON, SOAK: Dwell Timer
Keys  3 keys for digital setting
Input Specifications
Inputs  Thermocouple (4, K, T, R, S) / RTD (PT100)
Resolution  0.1/1°for TC/RTD inputs (fixed 1° for R & S input)
Indication accuracy  For TC inputs: 0.25% of F.S. +1°



For R &S inputs: 0.5% Of F.S, +1°

(30 min of warm up time)

For RTD input: 0.1% of FS. +1° (FS. = Full scale)
Temperature Unit  °C / F selectable
Input Filter (FTC)  0.2 to 10.0 sec
Sampling Time  250 ms
Output Specifications
Control Output
Relay Contact (SPDT)  5A @ 250V AC/ 30V DC, resistive
SSR Drive (Voltage Pulse)  12V DC, 50 mA
Auxiliary Output  (Relay or SSR user selectable)
Relay Contact (SPDT)  5A @ 250V AC/ 30V DC, resistive
Functional Specifications
Control action  1) PID control with auto tuning
2) ON – OFF control



3) Heat cool with auto tuning
Proportional Band (P)  1.0 to 400.0°
Integral Time (I)  0 to 9999 sec
Derivative Time (D)  0 to 9999 sec
Cycle Time   0.1 to 99.9 sec
Hysteresis width  0.1 to 99.9°
Manual Reset Value  -19.9 to 19.9°
Heat-cool
Control Action  PID
Proportional band – cool  0.0 to 400.0°
Cycle time – cool  0.1 to 99.9 sec
Dead band  SPLL to SPHL (Programmable)
Settings for alarm output
Modes  Deviation, Absolute
Hysteresis  0.1 to 99.9°
Auxiliary Supply Specifications
Supply Voltage  90 to 270V AC / DC (50 / 60 Hz)
Power Consumption  5 VA max @ 230V AC
