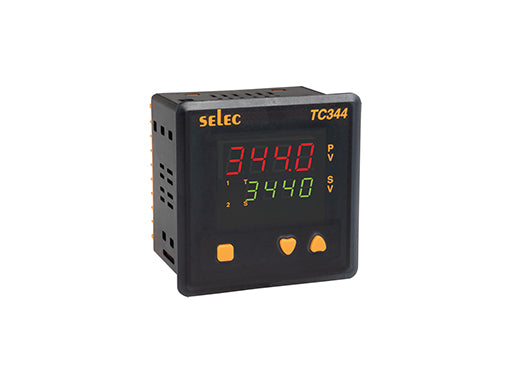

Selec TC344AX Temperature Controller
Selec TC344AX Temperature Controller
Regular price
Rs. 1,769.00
Regular price
Rs. 3,538.00
Sale price
Rs. 1,769.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | TC344AX |
|
Indication
Accuracy |
For J, K & T inputs : 0.25% of F.S. ±1 ° For R & S inputs : 0.5% of F.S. ±2 ° (20 min of warm up time for TC inputs) For RTD input : 0.1% of F.S. ±1 ° (F.S. = Full Scale) |
| Resolution | 0.1 / 1 ° for TC / RTD inputs (fixed 1 ° for R & S type TC input) |
| Humidity | 95% RH |
| Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
| Supply voltage | 85 to 270V AC / DC (50 / 60Hz) OPTIONAL – 24V AC / DC, ±10% |
| Input | Thermocouple (J, K, T, R, S) / RTD (PT100) |
| Output | |
| Control Output | (Relay or SSR user selectable) |
| Relay contact (SPDT) 5A resistive @ 250V AC / 30V DC SSR drive (Voltage Pulse) 12V DC, 50 mA |
|
| Auxiliary Output | Relay Contact (SPDT) 5A resistive @ 250V AC / 30V DC SSR drive (Voltage Pulse) 12V DC, 50 mA |
| Sampling Time | 250 ms |
| Engineering Units | °C / °F Selectable |
| Protection class | IP65 for faceplate |
| Weight | 200 gms |
