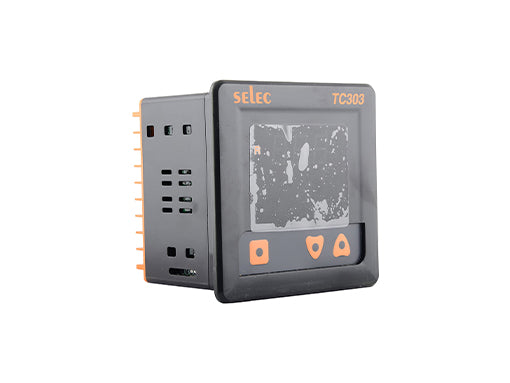

Selec TC303 Temperature Controller is a powerful digital meter for temperature control with provision for connecting with a thermocouple or RTD sensor to receive a temperature signal, then transmits the data output to standard analog signal 4-20mA/0-5V. This Digital temperature controller can directly display the current temperature.
Features of Selec Temperature Controller:
- TC303 Temperature Controller has high Performance.
- Single Display, 3 Digit, 7 Segment LED
- This TC303 Temperature Controller has LED Status indicator: Relay ON
- 3 Front panel control buttons
- TC/RTD Inputs
- PID, ON/OFF Control
- This Selec Temperature Controller has Single Setpoint
- Control Output: Relay or SSR Drive
Country of Origin: India
| Manufacturer | Selec |
|---|---|
| Model No | TC 303 A, TC 303 A-1, TC 303 AX, TC303AX-24V |
| Measuring Parameters | Temperature |
| J type Thermocouple | -199 to 750 C |
| T type Thermocouple | -199 to 400 C |
| K type Thermocouple | -199 to 999 C |
| R type Thermocouple | 0 to 999 C |
| S type Thermocouple | 0 to 999 C |
| Pt100 | -150 to 850 C |
| Accuracy | For J, K & T inputs: 0.25% of F.S. ±1 o For R & S inputs: 0.5% of F.S. ±2 (20 min of warm up time for TC input) o For RTD inputs: 0.1% of F.S. ±1 (F.S. = Full Scale) |
| Operating Temperature | 0 to 50℃ |
| Storage Temperature | -20°C to 75°C |
| Humidity | 0% to 95% rh |
| Input | Filter (FTC) : 0.2 to 10.0 sec |
| Sampling Time | 250 ms |
| Engineering Units | °C / °F Selectable |
| Weight | 180 Grams |
