Selec

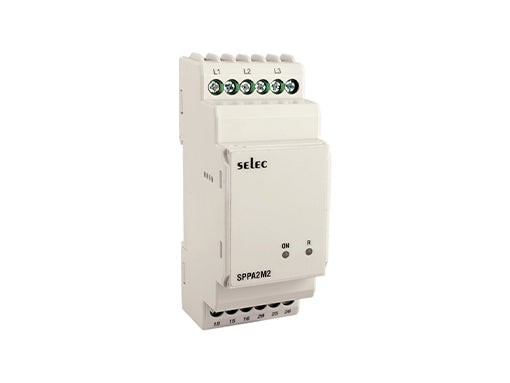

Selec SPPA2M2 Single Phase Preventer, 1 DPDT relay
Selec SPPA2M2 Single Phase Preventer, 1 DPDT relay
Regular price
Rs. 788.00
Regular price
Rs. 1,576.00
Sale price
Rs. 788.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | SPPA2M2 |
| Functional Specifications | |
| Phase Imbalance | 30V(Fixed) |
| Hysteresis | 6V |
| Voltage Accuracy | ±1% of Full Scale |
| Time Accuracy | ±5% ±100ms |
| Power ON Delay | :3s (Fixed) |
| Trip Setting | |
| Phase loss | |
| Phase Asymmetry | 30V (Fixed) |
| Over Voltage Trip | 10% Of Nominal Voltage |
| Under Voltage Trip | 15% Of Nominal Voltage |
| Trip & Recovery Time Delay | <120ms for Phase loss, Phase Asymmetry
<200ms for Over Voltage, Under Voltage |
| Reset Condition | After removal of fault condition Reset automatically after hysteresis of 6V. |
| Output Specifications | |
| Output Contact | DPDT(2C/O) |
| Contact Rating | 5A@250VAC res. |
| Supply Voltage | |
| Nominal Input Voltage | 415V AC (phase to phase) |
| Power Consumption | 50VA max |
| Operating Voltage | 280 to 520V AC (L-L) |
