Selec

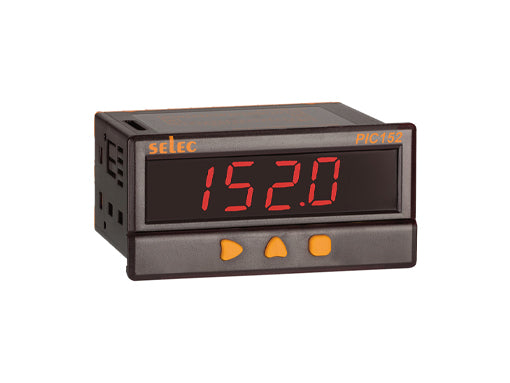

Selec PIC152A-VI Process Indicator, 2 Alarms and Retransmission

Selec PIC152A-VI Process Indicator, 2 Alarms and Retransmission

Rs. 2,632.00
Rs. 2,632.00
Sale Sold out
Shipping calculated at checkout.
Style

PRODUCT VARIANTS

Product Code Retransmission output Output 1 Output 2 Communication Supply Voltage Certification
PIC152A-VI 4-20mA, 0-10V Relay (5A) Relay (5A) — 90 to 270V AC / DC —
PIC152A-VI-C-24V 4-20mA, 0-10V Relay (5A) Relay (5A) Yes 24V DC —
PIC152A-VI-CE 4-20mA, 0-10V Relay (5A) Relay (5A) — 90 to 270V AC / DC CE, ROHS



Manufacturer  Selec
Model No.  PIC152A-VI
Display Specifications
Display  4 Digits 7 Segment LED Single Display Height of Display 0.5”
LED Indications  Alarm ON (2 Nos)
Input Specifications
Inputs  Thermocouple (J, K, T, R, S) RTD (PT100) DC Analog inputs (-5 to 56mV, 0 to 10V, 0/4 to 20mA)
Resolution  1 / 0.1 for TC / RTD only (Fixed 1° resolution for R & S type TC) Decimal point position selectable: 1 / 0.1 / 0.01 / 0.001 for analogue input
Indication Accuracy  For TC inputs: 0.25% of F.S. ±1 o For R & S inputs: 0.5% of F.S. ±2 (20 min of warm up time for TC inputs) o For RTD input: 0.1% of F.S. ±1 For Analog inputs: ±0.5% of F.S., ± 1 digit (F.S. = Full Scale)
Temperature Unit  C / F Selectable
Output Specifications
Alarm
Relay Contact (SPDT)  5A @ 250V AC resistive
Retransmission  0 / 4 to 20 mA DC, 0 to 5V DC, 0 to 10V DC
Sensor Supply  24V DC, 30mA
Functional Specifications
Alarms  2
Alarm Modes  High alarm, Low alarm, Band, Fail output and Fault diagnosis
Hysteresis  0.1 to 99.9 degree
Annunciator  Programmable
Reset Action  Automatic or Latched
Auxiliary Supply Specifications
Supply Voltage  90 to 270V AC / DC (50 / 60Hz) Optional: 24V DC
Power Consumption  6 VA max @ 230V AC
