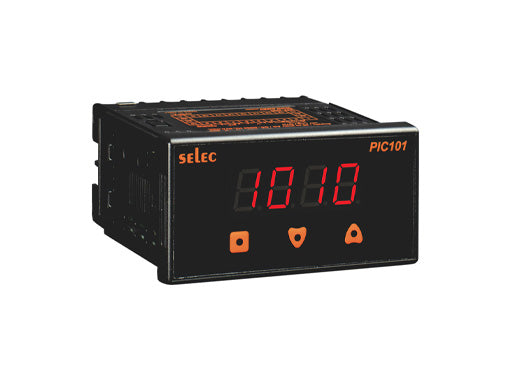

Selec PIC101N Process Indicator, Universal Input, sensor supply
Selec PIC101N Process Indicator, Universal Input, sensor supply
Regular price
Rs. 1,414.00
Regular price
Sale price
Rs. 1,414.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
PRODUCT VARIANTS
| Product Code | Supply Voltage | Certification |
|---|---|---|
| PIC101N | 90 to 270V AC / DC | CE |
| PIC101N-24V | 24V DC | CE |
| Manufacturer | Selec |
| Model No. | PIC101N |
| Display Specifications | |
| Display | 4 Digits 7 Segment LED Single Display Height of Display 0.5” |
| LED Indications | Alarm ON (2 Nos) |
| Input Specifications | |
| Inputs | Thermocouple (J, K, T, R, S) RTD (PT100) DC Analog inputs (0 to 56mV, 0 to 10V, 0 / 4 to 20mA) |
| Resolution | 1 / 0.1 for TC / RTD only (Fixed 1° resolution for R & S type TC) Decimal point position selectable: 1 / 0.1 / 0.01 / 0.001 for analogue input |
| Indication Accuracy | Temperature: 0.25% of span 1 C (After 20min. Warmup) |
| Temperature Unit | C / F Selectable |
| Output Specifications | |
| Sensor Supply | 24V DC, 30 mA |
| Auxiliary Supply Specifications | |
| Supply Voltage | 90 to 270V AC / DC (50 / 60Hz) Optional – 24V DC, ±10% |
| Power Consumption | 5 VA max @ 230V AC |
| Environmental Specifications | |
| Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
| Humidity | 95% RH |
