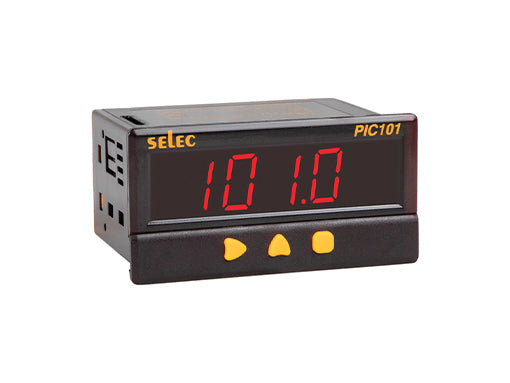

Selec PIC101A-T-230 Digital Process Indicator with TC/RTD Input
Selec PIC101A-T-230 Digital Process Indicator with TC/RTD Input
Regular price
Rs. 994.00
Regular price
Rs. 1,987.00
Sale price
Rs. 994.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Model No. | PIC101A-T-230 |
| Display Specifications | |
| Display | 4-digit 7 Segment LED Single Display Height of Display 0.56” |
| Input Specifications | |
| Inputs | For PIC101A-T-230: Thermocouple (J, K, T, R, S), RTD (PT100) For PIC101A-VI-230: Voltage: 0 – 10V DC Current: 0 – 20mA & 4 – 20mA DC |
| Resolution | 1 / 0.1 For PIC101A-T-230only o (Fix 1 resolution for R &S type TC) Decimal point position selectable 1 / 0.1 / 0.01 / 0.001 (For PIC101A-VI-230) |
| Temperature Unit | C / F selectable (For PIC101A-T-230) |
| Indication Accuracy | For PIC101A-T-230: o TC inputs: 0.25% of F.S. ±1 o R & S inputs: 0.5% of F.S. ±2 (20 min of warm up time for TC Inputs) o RTD input: 0.1% of F.S. ±1 For PIC101A-VI-230: ±0.5% of F.S. ± 1 digit (F.S. = Full Scale) |
| Auxiliary Supply Specifications | |
| Supply Voltage | 230V AC, ± 20%, 50/60 Hz |
| Power Consumption | 5 VA max@ 230 V AC |
| Environmental Specifications | |
| Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
| Humidity (non-condensing) | 95% RH |
