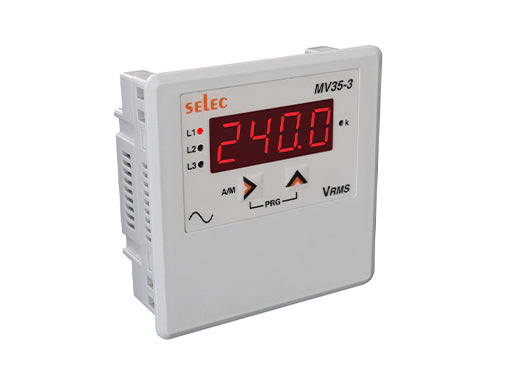

Selec MV35 Digital voltmeter with wide Aux supply
Selec MV35 Digital voltmeter with wide Aux supply
Regular price
Rs. 518.00
Regular price
Sale price
Rs. 518.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Product Code | Supply Voltage | Certification |
|---|---|---|
| MV35-3-G-40/300V-CE | 40-300V AC/DC | CE |
| MV35-1-G-40/300V-CE | 40-300V AC/DC | CE |
| Manufacturer | Selec |
| Select Model | MV35 |
| Display Specifications | |
| Display | 7 segment LED Display |
| Digits | 4 |
| Digit Height | 0.56″ (14.2mm) |
| Display Update Time | 1 sec |
| Display Range | 0-999kV |
| Resolution | Auto Resolution |
| Input Specifications | |
| Electrical Connection | 3Ø – 4 wire, 3Ø – 3 wire, 1Ø – 2 wire (MV35 1-G-40/300V for single phase only) |
| Input Type | AC |
| Rated Input Voltage | 11 to 300V (L-N), 19 to 519V (L-L) |
| Overrange Indication | “Or” for input > 519V (L-L), 300V (L-N) |
| Continuous max. input voltage | 120% of rated voltage |
| Accuracy | ±0.5% of Full scale |
| Frequency Range | 50 – 60Hz |
| Electrical Specification | |
| Input Impedance | 1MΩ (± 5%) |
| Installation Category | III |
| High Voltage Test | 2kV AC, 50Hz |
| IP Protection | IP51 (Front), IP 20 (Rear) |
| Sampling Rate | 3 samples / second |
| Dielectric withstand voltage | 2kV AC between auxiliary supply & measuring input |
| Rated Impulse withstand voltage | 2kV (1.2/50μS) |
| Auxiliary Supply Specifications | |
| Auxiliary Supply | 40V to 300V AC / DC |
| Supply Frequency | 50 / 60 Hz |
| Input Burden | 0.5 VA @ 5A AC |
| Power Consumption | 5 VA max |
| Settable Parameters | |
| Network Selection | 3 Ø-4W, 3 Ø-3W, 1 Ø-2W (Only applicable for MV35-3-G-40/300V) |
| CT Primary Setting | 1-999kV (Programmable for any value) |
| CT Secondary Setting | 100V-500V (Programmable for any value) |
