Selec

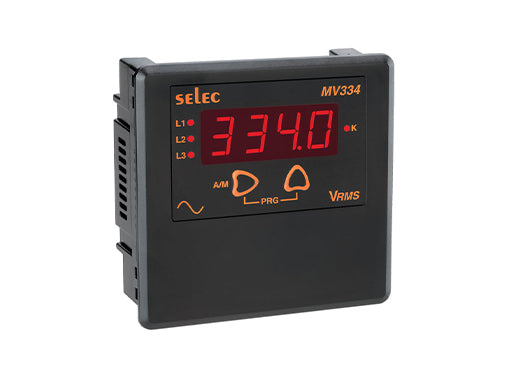

Selec MV334 LED Voltmeter
Selec MV334 LED Voltmeter
Regular price
Rs. 743.00
Regular price
Rs. 1,486.00
Sale price
Rs. 743.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Product Code | Supply Voltage | Certification |
|---|---|---|
| MV334-230V-CE | 230V AC ±20% (50/60 Hz) | CE, RoHS |
| MV334-230V | 230V AC ±20% (50/60 Hz) | — |
| Manufacturer | Selec |
| Select Model | MV334 |
| Display Specifications | |
| Display | 7 segment LED |
| Digits | 4 |
| Digit Height | 0.56″ (14.2mm) |
| Input Specifications | |
| Electrical Connection | 1Ø – 2 wire, 3Ø 3 wire, 3Ø 4 wire |
| Input Type | AC |
| Input Voltage Rated | 11-300V (L-N)
19-516V (L-L) |
| Continuous Max. Input Rating | 120% of rated I/P voltage |
| Accuracy | ±0.5% of F. S |
| Overrange Indication | “Or” for input> 516V (L-L)
“Or” for input> 300V (L-N) |
| Frequency | 50 / 60Hz |
| Resolution | Auto Resolution |
| Update Rate | 1 sec |
| Settable Parameters | |
| PT Primary | 100V – 999kV (Programmable to any value) |
| PT Secondary | 100V – 500V |
| Auxiliary Supply Specification | |
| Auxiliary Supply | 230V AC, ±20%, 50/60 Hz |
| Power Consumption | <5 VA max. |
