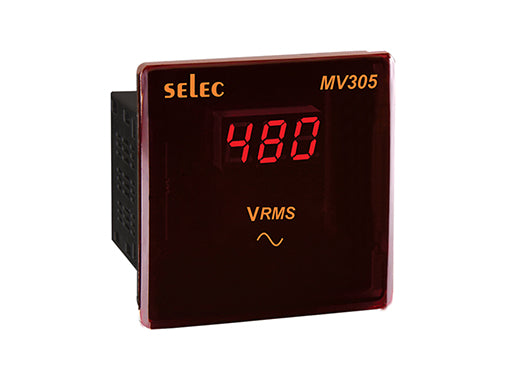

Selec MV305 LED Voltmeter
Selec MV305 LED Voltmeter
Regular price
Rs. 423.00
Regular price
Rs. 845.00
Sale price
Rs. 423.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Product Code | Supply Voltage | Certification |
|---|---|---|
| MV305-CE | 240V AC (50/60 Hz) | CE, RoHS |
| MV305-110V-CU | 110 V AC ±20%, (60Hz) | CE, RoHS & UL |
| MV305 | 240V AC (50/60 Hz) |
Country of Origin: India
| Manufacturer | Selec |
| Select Model | MV305 |
| Display Specifications | |
| Display | 7 segment LED Display |
| Digits | 3 |
| Digit Height | 0.56″ (14.2mm) |
| Display Range | 0 – 516V |
| Resolution | 1V |
| Input Specifications | |
| Electrical Connection | 1Ø – 2 wire |
| Input Type | AC |
| Input Voltage Range | 50 – 480V |
| Continuous Max. Input Rating | 516V |
| Accuracy | ±0.5% of F. S |
| Overrange Indication | “Or” for input> 516V |
| Frequency Range | 50 – 60Hz |
| Electrical Specification | |
| Installation Category | III |
| High Voltage Test | 2kV AC, 50Hz |
| IP Protection | IP51 Front Only |
| Sampling Rate | 3 samples / second |
| Dielectric withstand Voltage | 2kV AC between auxiliary supply & measuring input |
| Rated Impulse withstand Voltage | 3.5kV (1.2/50μS) |
| Auxiliary Supply Specifications | |
| Auxiliary Supply | AC: 240V AC ±20%, (50 / 60Hz) 110V AC ±20%, (60Hz) |
| Supply Frequency | 50 / 60 Hz |
| Input Burden | 0.5 VA @ 5A AC |
| Power Consumption | 5VA max @ 240V AC |
