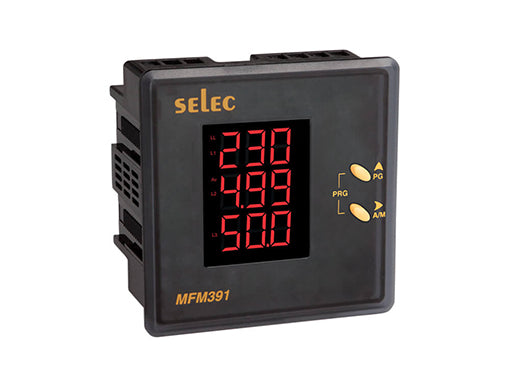

Selec MFM391 Economical Multi-function Meter
Selec MFM391 Economical Multi-function Meter
Regular price
Rs. 959.00
Regular price
Rs. 1,918.00
Sale price
Rs. 959.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | MFM391 |
| Display Specifications | |
| Display | 3 rows, 7 segments LED |
| Digits | 3 |
| Input Specifications | |
| Electrical Connection | 3Phase -3Wire, 3Phase-4Wire |
| Input Voltage Range | 11 to 300V AC (phase to neutral) 19 to 519V AC (phase to phase) |
| Input Current Range | Nominal 5A AC (Min – 20mA, Max – 6A) |
| Frequency | 45 to 65Hz |
| Power Consumption | <8VA max |
| Accuracy | Voltage (L – N / L – L): ± 0.5% of F. S Current: ±0.5% of F.S. Power factor: ±1.00 Frequency: ±0.1% for Measuring Voltage>11V for L – L voltage >35V Power (active, reactive, apparent): 1% |
| Measuring Parameters | Voltage (L – L / L – N) (individual/average), Current (I1, I2, I3) (individual / average), Frequency, Power factor(individual/average), active power, reactive &apparent power(individual/average), Run hour, RPM |
| Supply Specifications | |
| Auxiliary Supply | 85V to 276V AC, 50/60Hz |
