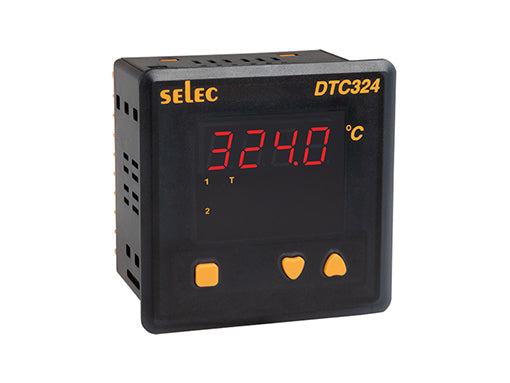

Selec DTC324A-2 Temperature Controller
Selec DTC324A-2 Temperature Controller
Regular price
Rs. 1,519.00
Regular price
Rs. 3,037.00
Sale price
Rs. 1,519.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | DTC324A-2 |
| Display Specifications | |
| Display | 4 Digits, 7 Segment LED single display DTC204A – 2: Height of display: 0.5385″ DTC324A – 2: Height of display: 0.5510″ |
| LED Indications | 1. Output 1 ON T: Auto tune 2. Output 2 ON |
| Input Specifications | |
| Inputs | Thermocouple (J, K, T, R, S) / RTD (PT100) |
| Resolution | 0.1 / 1 for TC / RTD inputs (fixed 1 for R & S type TC input) |
| Indication Accuracy | For J, K & T inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20 min of warm up time for TC inputs) o For RTD input: 0.1% of F.S. ±1 |
| Temperature Unit | C / F Selectable |
| Input Filter (FTC) | 0.2 to 10.0 sec |
| Sampling Time | 250 sec |
| Output Specifications | |
| Control Output | Relay or SSR user selectable |
| Relay contact (SPDT) 10A resistive @ 230V AC / 30V DC
SSR drive (Voltage pulse) 12V DC, 30mA |
|
| Auxiliary Output | Relay contact (SPDT) 5A resistive @ 230V AC / 30V DC |
| Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
| Power consumption | 6 VA max @ 230V AC |
