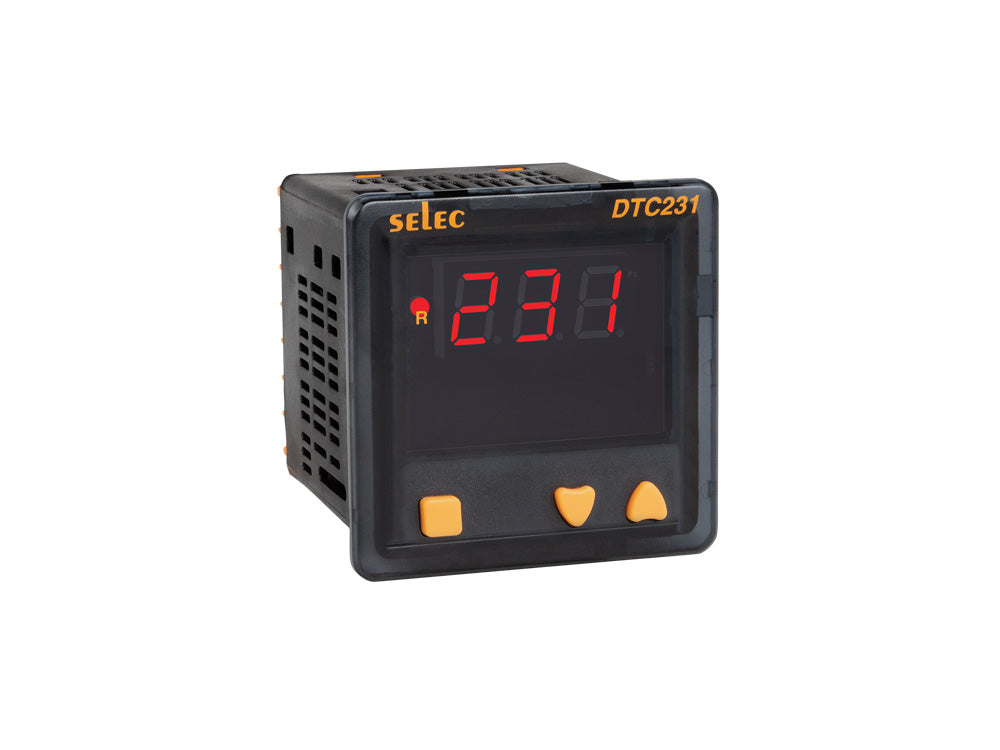

Selec DTC231 Temperature Controller
Selec DTC231 Temperature Controller
Regular price
Rs. 1,028.00
Regular price
Rs. 2,036.00
Sale price
Rs. 1,028.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Display | 3 Digits, 7 Segment LED Single Display Height of Display : 0.5385″ |
| LED Indications | Control Output ON |
| Inputs | Thermocouple (J, K) |
| Resolution | Fixed 1° |
| Indication Accuracy | 0.25% of F.S ±1 (20 min of warm up time) |
| Temperature Unit | °C / °F selectable |
| Input Filter (FTC) | 0.2 to 10.0 sec |
| Sampling Time | 250ms |
| Relay Contact | 10A resistive @250V AC / 30V DC |
| Contact Action | ON-OFF |
| Hysteresis Width | 0.1 to 99.9° |
| Display Bias | -19.9 to 19.9° |
| Supply Voltage | 85 to 270V AC/DC (50/60Hz) |
| Power Consumption | 4 VA max |
| Temperature | Operating: 0 to 50°C (32 to 122°F) Storage: -20 to 75°C (-4 to 167°F) |
| J Sensor Type | -199 to 750 °C / -199 to 999 °F |
| K Sensor Type | -199 to 999 |
