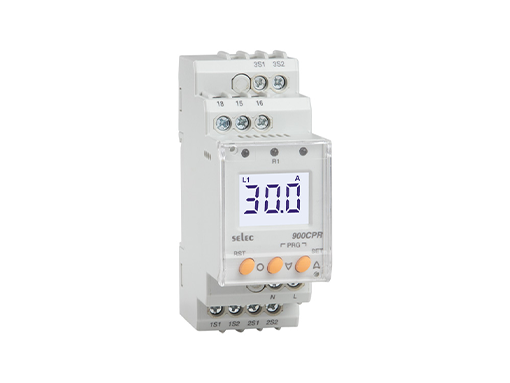

Selec 900CPR-1-BL-U Digital 1 phase Current protection relay with Backlight
Selec 900CPR-1-BL-U Digital 1 phase Current protection relay with Backlight
Regular price
Rs. 1,824.00
Regular price
Rs. 3,648.00
Sale price
Rs. 1,824.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Model No. | 900CPR-1-BL |
| Country of Origin | India |
| Display Specifications | |
| Type | Digital |
| Display | LCD with Backlight |
| No of LED | 1 |
| No of push button | 3 |
| Input Specifications | |
| Functions | |
| Measurements | Under current and over current |
| Time Settings | Power ON delay, Trip time delay, Recovery time delay |
| Alarm Indications | Trip |
| Latching | Selectable |
| Reset | Auto / Manual (Selectable) |
| Electrical Connection | 1 Ø – 2 wire |
| CT Settings | |
| CT Primary | 1A / 5A – 999A (Selectable) |
| CT Secondary | 1A / 5A (Selectable) |
| Current Rating | |
| Measuring Range (RMS Value) | 0 – 1.19kA |
| Trip Settings | |
| Under Current | 0 – 999A (0 – 100% of CT Primary Setting) |
| Over Current | 0.5A – 1.19kA (10 – 120% of CT Primary Setting) |
| Current Asymmetry | 5.0 – 99.9% |
| Output Specifications | |
| No. Of Relays | 2 |
| Type of Output (Relay 1) | 1C/O (SPDT) |
| Type of Output (Relay 2) | 1C/O (SPDT) |
| Relay Rating | NO / 5A, 250V AC NC / 3A, 250V AC |
| Auxiliary Supply Specifications | |
| Supply Voltage (Factory Set) | 85 to 270V AC / DC |
| Frequency | 50 – 60 Hz |
