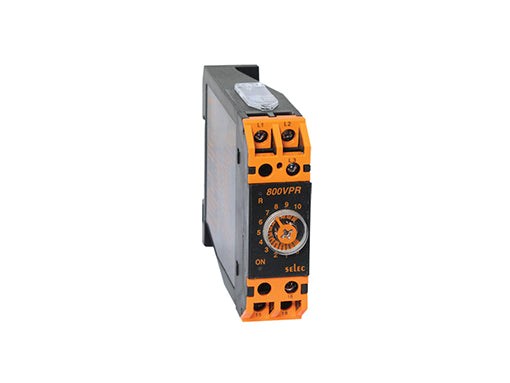

Selec 800VPR-3 Voltage Protection Relay
Selec 800VPR-3 Voltage Protection Relay
Regular price
Rs. 633.00
Regular price
Rs. 1,265.00
Sale price
Rs. 633.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | 800VPR-3 |
| Display Specifications | |
| Type | Analog |
| No of LED | 2 |
| No of Knob | 1 |
| LED Indication | Power ON, Relay ON |
| Input Specifications | |
| Measurements | Under Voltage, Over Voltage, Phase Failure, Phase Sequence |
| Time Settings | Trip Time Delay |
| Reset | Auto-reset on Removal of Fault Condition |
| Electrical Connection | 3Ø – 3 wire |
| Trip Settings | |
| Under Voltage | 310 to 405V AC (L-L) |
| Over Voltage | 425 to 520V AC (L-L) |
| Phase Failure | Yes |
| Phase Sequence | Yes |
| Trip Time Settings | |
| Trip Time Delay | 0 – 10sec (For under and over voltages) Instantaneous (For phase loss & phase sequence) |
| Power On Delay | 400ms |
| Output Specifications | |
| No of Relays | 1 |
| Relay Contact | 1 C/O (SPDT) |
| Relay Rating | NO / 5A, NC / 5A@250V AC, Resistive Load |
| Auxiliary Supply Specifications | |
| Supply Specification | Self-Powered |
| Frequency | 50 / 60 Hz |
| Power Consumption | 22VA Max |
| Operating Voltage | 310 to 520V AC (L-L) |
| Temperature | Operating Temperature: 0 to 50 C
Storage Temperature: -20 to 70 C |
| Mounting | DIN Rail |
