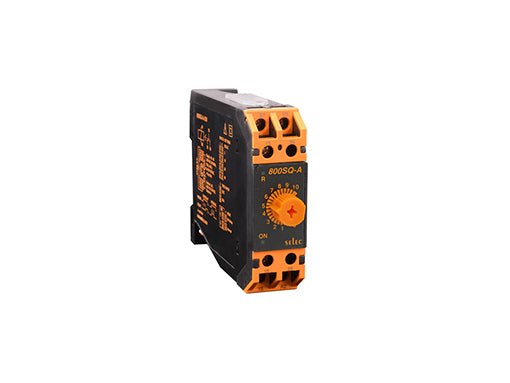

Selec 800SQ-A Time Relay
Selec 800SQ-A Time Relay
Regular price
Rs. 415.00
Regular price
Rs. 829.00
Sale price
Rs. 415.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | 800SQ-A |
| Input Specifications | |
| Accuracy | Setting: ±5% of F.S. Repeat: ± 0.5% or 50msec (F.S. = Full Scale) |
| Output Specifications | Relay Contact 1 C/O SPDT Contact Rating 5A @ 250V AC / 24V DC, resistive |
| Humidity | 95% RH |
| Temperature | Operating: 0 to 50 C (32 to 122 F) Storage: -20 to 75 C (-4 to 167 F) |
| Supply voltage | 230V AC & 24V AC / DC (50 / 60Hz) -15% to 10% tolerance |
| Functional Specifications | |
| Modes | ON delay / Interval |
| Time Ranges | 0 – 3sec / min 0 – 10sec / min 0 – 30sec / min 0 – 60sec / min |
| Resolution | 0.3 sec |
| Reset | On power interruption Reset time < 100msec |
| Mounting | DIN Rail Mount |
