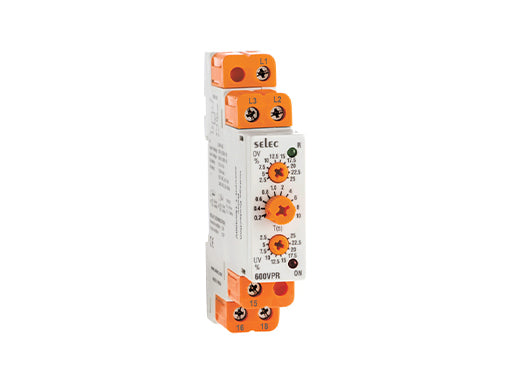

Selec 600VPR-310/520 Voltage protection relay for 415V (L-L)
Selec 600VPR-310/520 Voltage protection relay for 415V (L-L)
Regular price
Rs. 983.00
Regular price
Rs. 1,965.00
Sale price
Rs. 983.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Select Model | 600VPR-310/520 |
| Display Specifications | |
| Type | Analog |
| No. of LED | 2 |
| No. of Knob | 3 |
| Input Specifications | |
| Accuracy (Trip Voltage) | ±0.5% of Full Scale |
| Accuracy (Trip Time) | ±5% of Full Scale |
| Reset | Auto reset on removal of fault condition |
| Output Specifications | |
| Relay Contact | 1 C/O (SPDT) |
| Relay Rating | NO / 5A, NC / 3A@250V AC |
| Auxiliary Supply Specifications | |
| Nominal Input Voltage | 415V AC |
| Operating Voltage | 310 to 520V AC |
| Power Consumption | 20VA max |
| Functional Specifications | |
| Phase Sequence | Yes |
| Phase Failure | ±0.5% of Full Scale |
| Under Voltage | 310 to 405V AC |
| Over Voltage | 425 to 520V AC |
| Trip delay (T) | 0.2 to 10sec |
| Power On Delay | 400msec |
