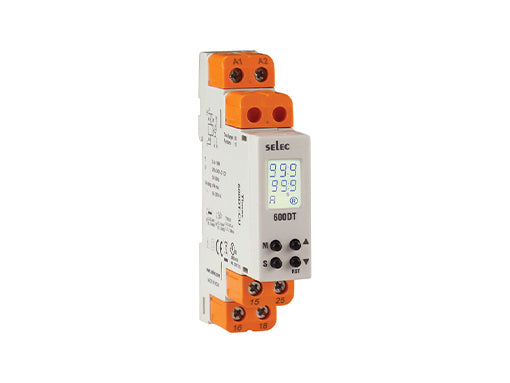

Selec 600DT 15 Functions, Wide Time Range, Universal Power Supply Multifunction Digital Timer
Selec 600DT 15 Functions, Wide Time Range, Universal Power Supply Multifunction Digital Timer
Regular price
Rs. 1,029.00
Regular price
Rs. 2,058.00
Sale price
Rs. 1,029.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Manufacturer | Selec |
| Model No. |
600DT-CU |
| Display Specifications | |
| Display | 3 + 3 digits |
| Indications | Relay ON, Operating modes, Hr, Min, Sec |
| Input Specifications | |
| Accuracy | Setting: ± 0.1% of set time or ±50msec (whichever is greater) For Y contact operation: +100msec Repeat: ± 0.1 % |
| Output Specifications | |
| Relay Contact | 1 C/O SPDT |
| Contact Rating | 8A @ 250V AC |
| Functional Specifications | |
| Modes |
On delay (A)
Interval (B) Asymmetrical cyclic OFF first (C) Asymmetrical cyclic ON first (D) Cyclic equal OFF first (E) Cyclic equal ON first (F) Pulse output (H) Delay on break (J) Delay on make / break (K) Interval after break (L) Single shot (P) Retrigger able single shot (Q) Latching relay (R) Delay on break with totalise (T) Interval with totalise (U) |
| Time Ranges | 0 – 9.99sec 0 – 99.9sec / min /hr 0 – 999sec / min / hr 0 – 9:59min: sec 0 – 9:59hr: min |
| Counting Direction | down |
| Memory Retention | Yes (selectable) |
| Resolution | 0.01 sec |
| Reset | Front key, on power interruption Reset time <100msec |
| Auxiliary Supply Specifications | |
| Supply voltage | 20 to 240V AC / DC (50 / 60Hz) |
| Power consumption | 4VA max |
