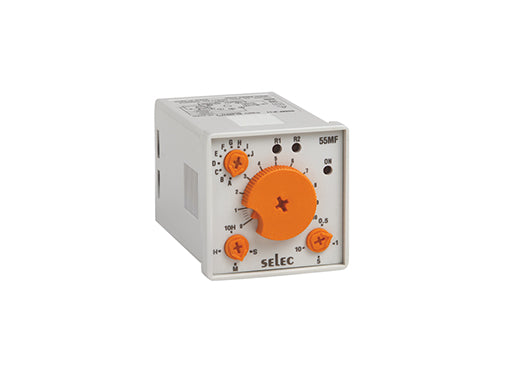

Selec 55MF-P8 Plug Mount Timer
Selec 55MF-P8 Plug Mount Timer
Couldn't load pickup availability
Selec 55MF-P8 is a plug mount timer which features 10 functions, 25 Time Ranges, Universal Supply Voltage, Knobs for mode setting, Time Setting, Time Scale and Division, LED Indicators Power ON, Relay ON
|
Manufacturer |
Selec |
|
Select Model |
55MF-P8 |
|
Display Specifications |
|
|
LED Indication |
Power ON, Relay ON |
|
Input Specifications |
|
|
Accuracy Setting |
±5% of F.S. or 50msec (Whichever is greater) |
|
Repeat |
±0.5% or 50msec (Whichever is greater) |
|
Output Specifications |
|
|
Relay Contact |
2 X 1 C/O SPDT |
|
Contact Rating |
6A @ 250 AC / 24V DC, resistive |
|
Functional Specification |
|
|
Modes |
On Delay, Pulse Output with instantaneous limit, ON Delay with Instantaneous limit, Interval with Instantaneous limit, Cyclic Equal OFF First, Cyclic Equal OFF First with Instantaneous limit, Cyclic Equal ON First, Cyclic Equal ON First with Instantaneous limit, Star delta with 50ms pause time, Star delta with 100ms pause time |
|
Resolution |
0.05sec |
|
Reset |
On power interruption, Reset time <100msec |
|
Auxiliary Supply Specifications |
|
|
Supply Voltage |
20-240V AC / DC (50 / 60Hz) |
|
Power Consumption |
5VA max |
