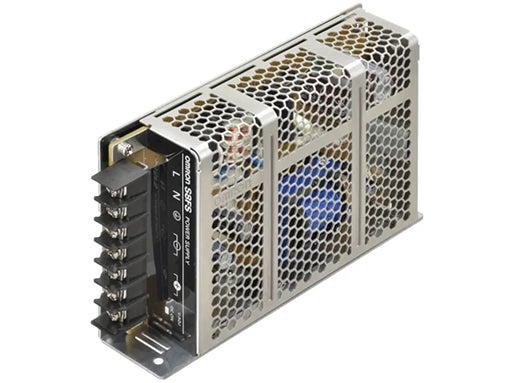

Omron Switching Power Supply, S8FS-C10024J, 24V DC, 4.5A, 100W, 1 Output, 100 → 240V AC Input Voltage

Power rating

Item                                                 Output voltage

100 W

5 V

12 V

15 V

24 V

36 V

48 V

Efficiency *

115 VAC input

80% typ.

82% typ.

83% typ.

85% typ.

86% typ.

87% typ.

230 VAC input

81% typ.

83% typ.

84% typ.

87% typ.

87% typ.

88% typ.

Input

Voltage range *

Single phase 85 to 132 VAC, 176 to 264 VAC, 248 to 373 VDC Select with the switch. (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on page 18.)

Frequency *

50 /60 Hz (47 to 450 Hz)

Current *

115 VAC input

2 A typ.

230 VAC input

1.1 A typ.

Power factor

---

Leakage current

115 VAC input

0.35 mA

0.35 mA

0.35 mA

0.35 mA

0.40 mA

0.40 mA

230 VAC input

0.60 mA

0.55 mA

0.60 mA

0.50 mA

0.60 mA

0.60 mA

Inrush current *

(for a cold start at 25°)

115 VAC input

32 A typ.

230 VAC input

32 A typ.

Output

Rated Output Current

20 A

8.5 A

7 A

4.5 A

2.8 A

2.3 A

Voltage adjustment range *

-10% to 10% (with V. ADJ)

Ripple & Noise voltage *

100 to 120 VAC/200 to

240 VAC input

70 mVp-p max.

100 mVp-p max.

70 mVp-p max.

120 mVp-p max.

90 mVp-p max.

120 mVp-p max.

Input variation influence *

0.5% max.

Load variation influence *

1.0% max.

Temperature vari- ation influence

100 to 120 VAC/200 to

240 VAC input

0.03%/°C max.

Startup time *

115 VAC input

710 ms typ.

440 ms typ.

440 ms typ.

430 ms typ.

450 ms typ.

430 ms typ.

230 VAC input

720 ms typ.

700 ms typ.

720 ms typ.

660 ms typ.

690 ms typ.

660 ms typ.

Hold time *

115 VAC input

23 ms typ.

37 ms typ.

36 ms typ.

34 ms typ.

36 ms typ.

34 ms typ.

230 VAC input

29 ms typ.

40 ms typ.

39 ms typ.

39 ms typ.

41 ms typ.

38 ms typ.

Additional functions

Overload protection

Yes, automatic reset

Overvoltage protection *

Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)

Overheat protection

No

Series operation

Yes (For up to 2 Power Supplies, external diodes are required.)

Parallel operation

No (However, backup operation is possible, external diodes are required.)

Remote sensing

No

Remote control

No

Output indicator

Yes (LED: Green)

Insula- tion

Withstand voltage

3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA

2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA

1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA

Insulation resistance

100 MÙ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC

Environment

Ambient operating temperature

-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on page 17.) (with no condensation or icing)

Storage temperature

-40 to 85°C (with no condensation or icing)

Ambient operating humidity

20% to 90% (Storage humidity: 10% to 95%)

Vibration resistance

10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions

Shock resistance

150 m/s2, 3 times each in ±X, ±Y, ±Z directions

Reliability

MTBF

135,000 hrs min.

Life expectancy *

10 years min.

Construction

Dimensions (W´H´D)

Refer to Dimensions on pages 21 and 24.

Weight

400 g max.

Cooling fan

No

Degree of protection

---

Standards

Harmonic current emissions

Conforms to EN 61000-3-2, GB17625.1

EMI

Conducted Emissions

Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254

Radiated Emissions

Conforms to EN 61204-3 Class B, EN 55011 Class B, GB9254

EMS

Conforms to EN 61204-3 high severity levels

Safety Standards

Approved Standards

UL : cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1

CCC: GB4943

Conformed Standards

EN: EN 60950-1 OVC II Pol2

Marine Standards

No

SEMI

No
